Send logs to Graylog with Winston GELF package

Graylog Open 的日志服务，对于小微服务来说简直就是神器，每次登录服务器看日志实在太 low 了，所以集成到 express 服务上，就可以在线直接查日志了。

Graylog 部署

使用 docker-compose 来部署 Graylog，我尝试用官网的 docker-compose 但是起不起来，总是有各种奇怪的问题，后来找到这个配置文件，可以成功部署：

docker-compose.yml

version: '3'
services:
  # MongoDB: https://hub.docker.com/_/mongo/
  mongo:
    image: mongo:5.0.13
    networks:
      - graylog

  # Elasticsearch: https://www.elastic.co/guide/en/elasticsearch/reference/7.10/docker.html
  elasticsearch:
    image: docker.elastic.co/elasticsearch/elasticsearch-oss:7.10.2
    environment:
      - http.host=0.0.0.0
      - transport.host=localhost
      - network.host=0.0.0.0
      - 'ES_JAVA_OPTS=-Dlog4j2.formatMsgNoLookups=true -Xms512m -Xmx512m'
    deploy:
      resources:
        limits:
          memory: 1g
    networks:
      - graylog

  # Graylog: https://hub.docker.com/r/graylog/graylog/
  graylog:
    image: graylog/graylog:5.0
    environment:
      # CHANGE ME (must be at least 16 characters)!
      - GRAYLOG_PASSWORD_SECRET=B1wLkcwCoZ102xsRbx3
      # Password:
      - GRAYLOG_ROOT_PASSWORD_SHA2=xxx
      - GRAYLOG_HTTP_EXTERNAL_URI=http://127.0.0.1:9000/
    entrypoint: /usr/bin/tini -- wait-for-it elasticsearch:9200 --  /docker-entrypoint.sh
    networks:
      - graylog
    restart: always
    depends_on:
      - mongo
      - elasticsearch
    ports:
      # Graylog web interface and REST API
      - 9000:9000
      # Syslog TCP
      - 1514:1514
      # Syslog UDP
      - 1514:1514/udp
      # GELF TCP
      - 12201:12201
      # GELF UDP
      - 12201:12201/udp
networks:
  graylog:
    driver: bridge

其中，

• GRAYLOG_PASSWORD_SECRET 的长度必须大于等于 16 位，随便找个password 生成器即可。
• GRAYLOG_ROOT_PASSWORD_SHA2 是 dashboard 登录密码的 sha2 加密字符串，用生成器里直接生成即可。

启动：

docker compose up -d

配置 Graylog 接收 Winston 的日志

打开 dashboard，本地访问地址是 http://localhost:9000

1. 打开Inputs配置页面

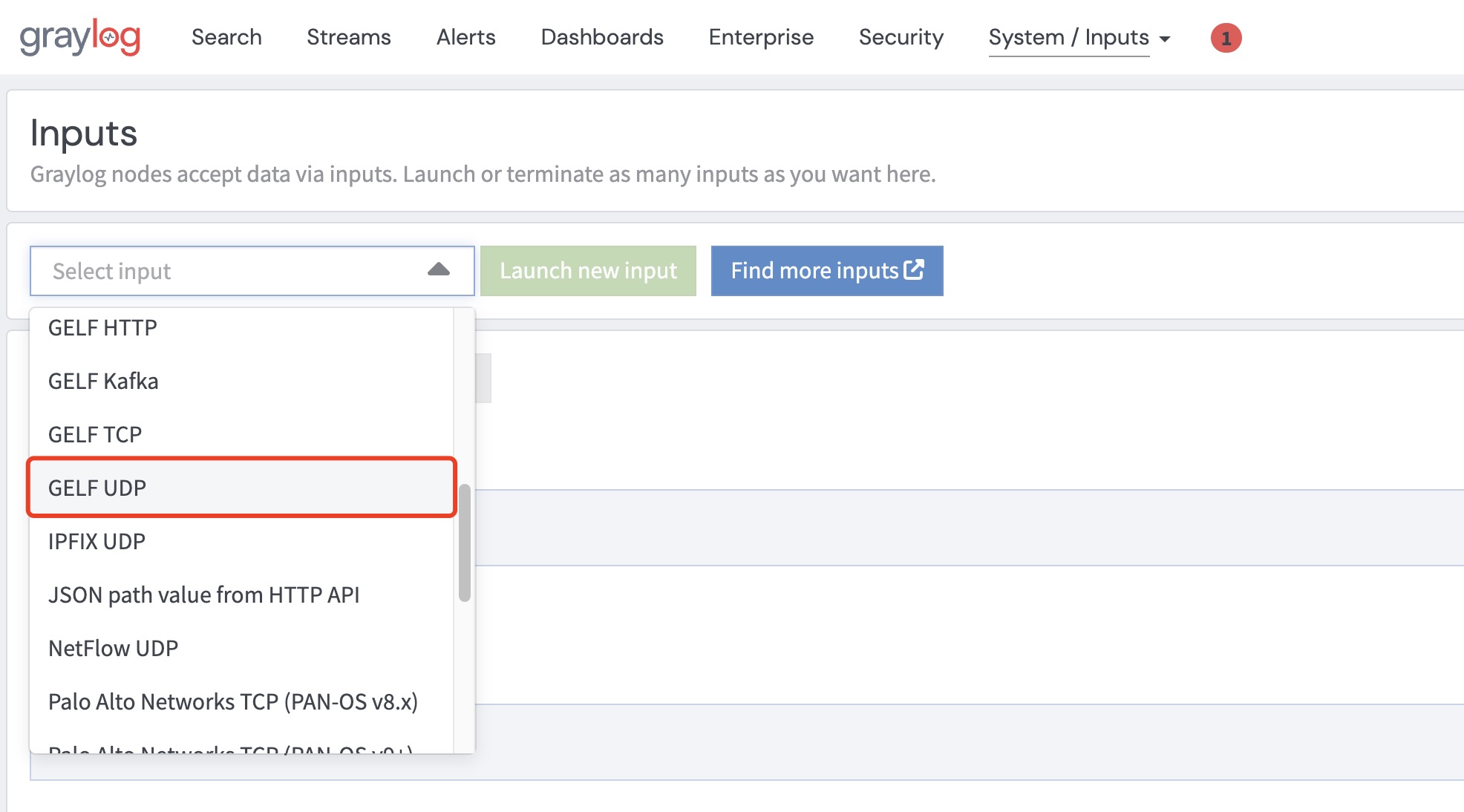

2. 选择 Input 类型为GELF UDP

点击Launch new input按钮，在弹出框里输入Title为GELF UDP，然后点击确认按钮Launch Input.

在 express 项目中配置 Winston

安装winston-graylog2类库，在 Winston 的 transports 中添加：

new WinstonGraylog2({
    level: 'info',
    graylog: {
        servers: [{ host: 'localhost', port: 12201 }],
        hostname: 'app',
        facility: 'service-logs',
        bufferSize: 1400,
    },
}) as any,

我的完整 logger 工具代码如下：

logger.ts

import winston from 'winston';
import 'winston-daily-rotate-file';
import WinstonGraylog2 from 'winston-graylog2';

const { combine, timestamp, json } = winston.format;

export const logger = winston.createLogger({
  level: 'info',
  format: combine(timestamp(), json()),
  transports: [
    new winston.transports.DailyRotateFile({
      level: 'info',
      filename: './logs/app-%DATE%.log',
      datePattern: 'YYYY-MM-DD',
      zippedArchive: true,
      maxSize: '20m',
      maxFiles: '14d',
    }),
    new winston.transports.DailyRotateFile({
      level: 'error',
      filename: './logs/app-err-%DATE%.log',
      datePattern: 'YYYY-MM-DD',
      zippedArchive: true,
      maxSize: '20m',
      maxFiles: '14d',
    }),
    new WinstonGraylog2({
      level: 'info',
      graylog: {
        servers: [{ host: 'localhost', port: 12201 }],
        hostname: 'app',
        facility: 'service-logs',
        bufferSize: 1400,
      },
    }) as any,
  ],
});

if (process.env.NODE_ENV !== 'production') {
  logger.add(
    new winston.transports.Console({
      format: winston.format.simple(),
    })
  );
}

启动 express，触发日志打印，回到 dashboard，就可以在Graylog-Dashboard/Search里看到有日志了。
